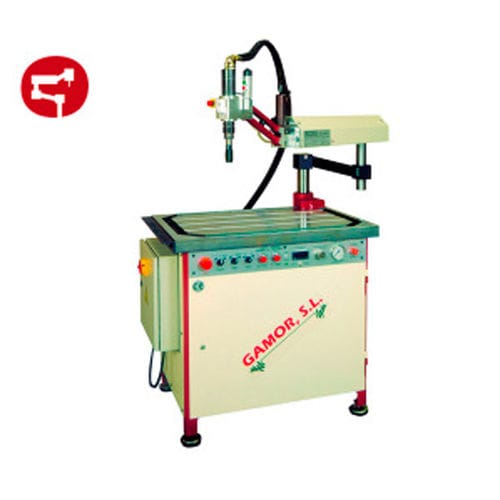

Swing-arm tapping machine RHG-M39 (M2-M39)
hydraulicspeed control

swing-arm tapping machine
swing-arm tapping machine
Add to favorites
Compare this product


Characteristics

Type
swing-arm
Operation
hydraulic
Other characteristics
speed control

Description

This model is specially indicated for large productions of vertical tapping, accurate mechanics, moulds and/or parts requiring a high accuracy in the execution of the tapping, with a full quality guarantee both in the finish and tapping tolerances. The machine head allows to place standard tool directly up to measures of 30 mm. It is necessary to work with a special chuck adapter from Gamor for bigger size. This special tap-holder fits in the chuck machine and can be used for sizes up to 36x29 mm. TAPPING CAPACITY Metric system: M2-M39 Whitworth system: BSW 3/32 - 1" 1/2 TECHNICAL CHARACTERISTICS CAPACITY: M2-M39 R.P.M.: 22 a 630 / 30 a 890(plus) NM: 490 / 3410 (plus) MAXIMUM PRESSURE: 160 Kg /cm² ELECTRIC MOTOR : 5,5 CV VOLTAGE: 220 monophase / 380 triphase SPEED CONTROL: ELECTRONIC ARM LENGTH: 750 mm. COVERING WORK TABLE: TOTAL TAPPING - CHU: QUICK CHANGE Ø31 OIL DEPOSIT: 50 LITERS WEIGHT: 460 Kg / 470 Kg (plus)
