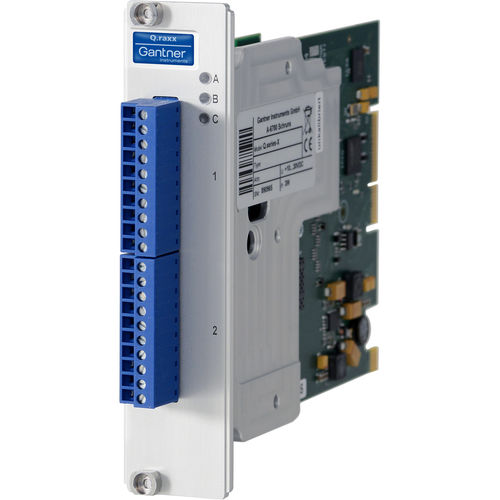

Digital I O module Q.raxx XL A109
analog4 digital inputs4 analog outputs

Add to favorites

Compare this product

Go to the Gantner Instruments website for more information

Characteristics

Signal type: digital, analog
Number of inputs/outputs: 4 digital inputs, 4 analog outputs
Other characteristics: configurable

Description

voltage (±10 VDC) or current (0 - 20 mA), configurable per channel DAC-resolution 16 bit 100 kHz each channel Outputs freely scalable 4 digital inputs and outputs configurable as 2 counter, 2 frequency, or 2 PWM inputs, 4 frequency out, 4 PWM output or 4 state out Frequency measurement Frequency measurement up to 1 MHz, direction detection Counter Forward-backward counter, quadrature counter with reference position recognition (reset/enable), up to 1 MHz PWM input Measurement of duty cycle and frequency 3-Way galvanic isolation 500 VDC channel to channel, channel to power supply, and bank

Catalogs

No catalogs are available for this product.

See all of Gantner Instruments‘s catalogs

Exhibitions

Meet this supplier at the following exhibition(s):

SPS 2024

12-14 Nov 2024 Nüernberg (Germany) Hall 5 - Stand 436
