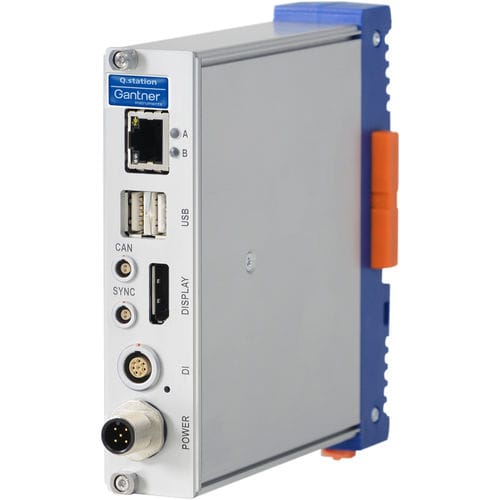

Embedded computer Q.station XT
DIN railIntel® AtomUSB

Embedded computer - Q.station XT - Gantner Instruments - DIN rail / Intel® Atom / USB

Embedded computer - Q.station XT - Gantner Instruments - DIN rail / Intel® Atom / USB

Add to favorites

Compare this product

Go to the Gantner Instruments website for more information

Characteristics

Configuration: embedded, DIN rail
Processor: Intel® Atom
Ports: USB, Ethernet, Modbus
Domain: industrial, measurement

Description

Very high data rates up to 100 kHz each channel 100 kHz at 16 channels (4 each UART line), 10 kHz at 128 channels 64 Q.bloxx modules connectable Ethernet interface for configuration and data output 1 Gig-E, TCP/IP, UDP, up to 16 MB/s Modbus TCP/IP, ASCII, High Speed Port Web server, web client and e-mail Synchronization and time stamp of measurement values IRIG 2 based master-slave principle on RS485 standard system synchronization ±1 μs applicable Data buffer memory dyn. 500 MByte, stat. 4 GByte expandable over USB (up to 1,000,000 measurements/s) and SD card 6 digital Inputs direct connection of encoder for angular position, PWM, counter and status signals. PAC functionality with extensive library (T versions) fast PID controllers, process control, data logging, transfer functions, mathematics, Boolean combinations, function generators

Catalogs

No catalogs are available for this product.

See all of Gantner Instruments‘s catalogs

Go to the Gantner Instruments website for more information
