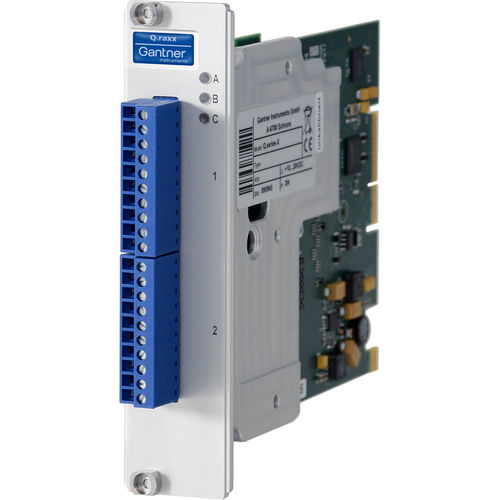

Analog I O module Q.raxx XE A106
EtherCAT2-Iconfigurable

Add to favorites

Compare this product

Go to the Gantner Instruments website for more information

Characteristics

Signal type: analog
Bus: EtherCAT
Number of inputs/outputs: 2-I
Other characteristics: configurable

Description

strain gage and inductive half and full bridges, LVDT, RVDT quarter bridge with completion terminal DC and carrier frequency (CF) principle 2.5 and 5 VDC excitation, 2.5 and 5 VDCeff excitation carrier frequency, 600 Hz or 4.8 kHz configurable per channel ±10 VDC, 20 kHz update rate per channel High-accuracy digitization 24-bit ADC, 20 kHz sample rate per channel 4 digital I/Os input: state, tare, memory reset, output: state, alarm, threshold Signal conditioning linearization, filtering, average, scaling, min/max, RMS, arithmetic, alarm 3-Way galvanic isolation Channel to channel, channel to power supply, and channel to bus

Catalogs

No catalogs are available for this product.

See all of Gantner Instruments‘s catalogs

Exhibitions

Meet this supplier at the following exhibition(s):

SPS 2024

12-14 Nov 2024 Nüernberg (Germany) Hall 5 - Stand 436

More information

Go to the Gantner Instruments website for more information
