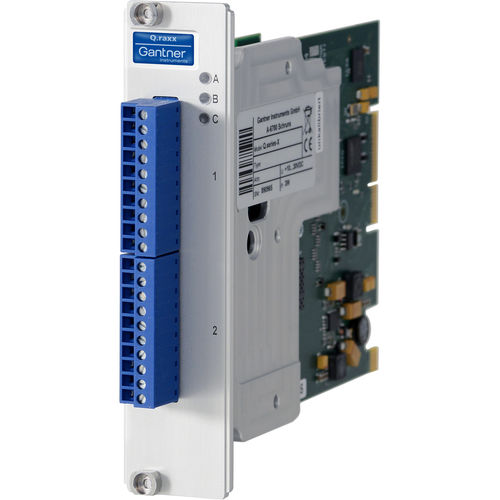

Analog I O module Q.raxx XE A109
EtherCAT4 analog inputs4 digital inputs

Analog I O module - Q.raxx XE A109 - Gantner Instruments - EtherCAT / 4 analog inputs / 4 digital inputs

Add to favorites

Compare this product

Go to the Gantner Instruments website for more information

Characteristics

Signal type: analog
Bus: EtherCAT
Number of inputs/outputs: 4 analog inputs, 4 digital inputs
Other characteristics: configurable

Description

voltage (±10 VDC) or current (0 - 20 mA), configurable per channel DAC-resolution 16 bit 100 kHz each channel Outputs freely scalable configurable as 2 counter, 2 frequency, or 2 PWM inputs, 4 frequency out, 4 PWM output or 4 state out Frequency measurement Frequency measurement up to 1 MHz, direction detection Counter Forward-backward counter, quadrature counter with reference position recognition (reset/enable), up to 1 MHz PWM input Measurement of duty cycle and frequency 3-Way galvanic isolation Channel to channel, channel to power supply, and bank
