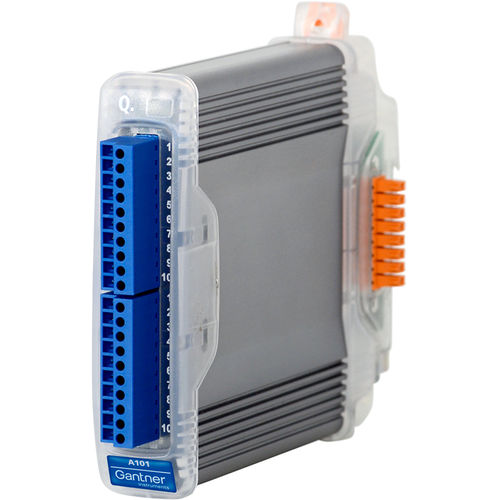

Analog I O module Q.bloxx A1054-Itemperature
Add to favorites
Compare this product
Characteristics
- Signal type
- analog
- Number of inputs/outputs
- 4-I
- Applications
- temperature
Description
4 analog input channels
Pt100, Pt1000, resistance 400 ohm / 4000 ohm , 2-, 3- or 4- wire connection
High-precision temperature measurement
max. measurement error 0.05°C, temperature drift 0.02 / 10K (for Pt100)
High-accuracy digitization
24-bit ADC, 10 Hz sample rate per channel
Signal conditioning
linearization, filtering, average, scaling, min/max, RMS, arithmetic, alarm
3-Way galvanic isolation
Channel to channel, channel to power supply, and channel to bus
