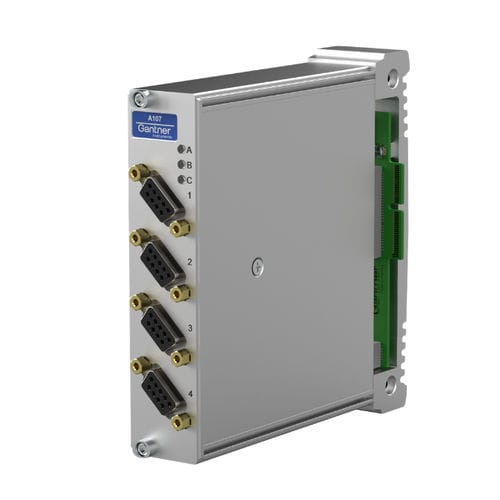

Voltage measuring module Q.brixx XE A107 4M1

currentstrainthermocouple

For MEMS based sensors like single axis accelerometers 4 Universal analog input channels voltage, current, resistance, potentiometer, RTD (Pt100 / Pt1000), strain gage full and half bridge. Thermocouple and strain gage quarter bridge with completion termial Completion terminal is currently not available. Sensor supply for each channel 15 VDC max 20 mA, galvanic isolated High-accuracy digitization 24-bit ADC, 20 kHz sample rate per channel Signal conditioning linearization, filtering, average, scaling, min/max, RMS, arithmetic, alarm 3-Way galvanic isolation Channel to channel, channel to power supply, and channel to bus Electromagnetic compatibility (EMC) according to IEC 61000-4 and EN 55011
