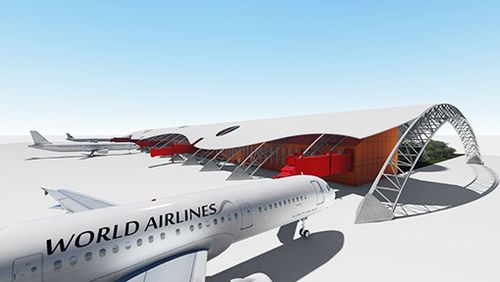

The foldout hangar G50/70 has an aluminum structure which combines the lightness of all its components, accompanied by a resistance equivalent to steel, which allows to maintain all type of aircraft. The Hangar G50/70 roof is generally composed generally by plate, although Gaptek offers a fast, scalable and optimal solution to the continuous growth of airports around the world
Gaptek offers two base models depending on the type of structure. Every model has different characteristics and options that our engineering department can adjust to develop a solution tailored to your company’s requirements.
The two terminal models are costumized and designed with the Gaptek System and can be tailored to all sorts of needs.
Below is a description of all specifications and options that each model offers.
Technical specifications
Construction system: Gaptek Flat
Required cementation: Yes
Structure:
Structure assembly: Mechanical joints
Material: High resistance alloy aluminum AW-6082-T6
Warranty: 20 years
Standard Resistances:
Wind Standard: 140km/h
Fire Standard: REI30
Snow Standard: 120kg/m
Climate conditions: -20 ºC to 55ºC
Envelope:
Exterior: Rock wool sandwich panel/high-resistance tensile canvas
Interior: Rock wool sandwich panel
Certifications:
ISO 9001:2015 in Quality Management System
UNE-EN ISO 14001 in Environmental Management
UNE-ISO/IEC 27001 in Information Security Management
ISO 45001:2018 in Occupational Health and Safety Management System
CE Marking in all materials, including EN-1090 in relation to steel and aluminum structures
