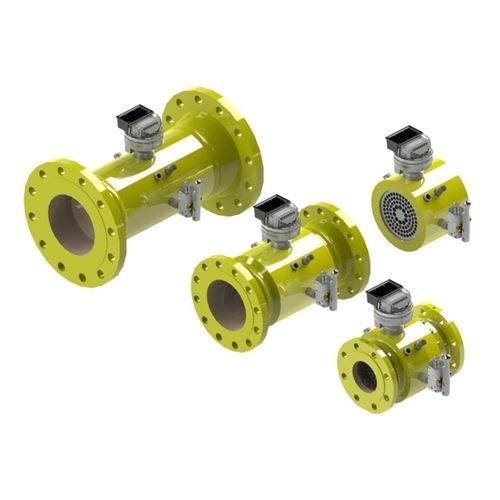

Gas meter without display FMT-Lx

turbine

The FMT-Lx turbine gas meter is suitable for natural gas and various non-corrosive gases. The meter consists of an aluminum cartridge, housing all metrologically important elements. The meter, as well as the cartridge, are MID approved for fiscal use. The meter can be equipped with various options. KEY FEATURES Flow rate: 8 – 6500 m3/h (25 – 23,000 cuft/h) DN80 – DN300 Flanges: DIN PN 10 to PN 100, ANSI 150 to ANSI 600 Installation Length 3 x D Low weight aluminum meter bodies (DIN PN16 and ANSI150) Electronic Index with PCS (on request) MAIN BENEFITS MID approved for fiscal use by NMi Only 5 x D straight Inlet for severe perturbations Exchangeable / on-site replaceable cartridge Superior accuracy at high operating pressure, better 0.5% of reading Minimum pressure loss Various options Applications NG CNG LNG
