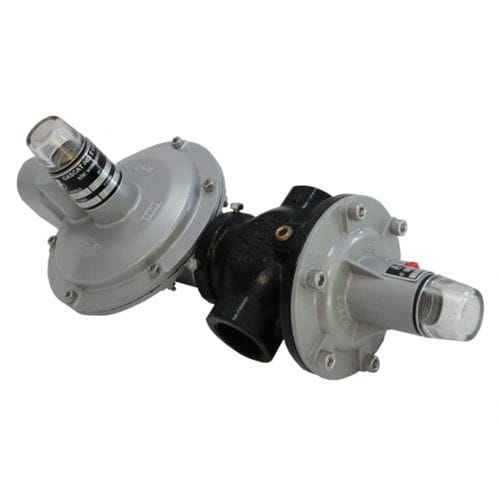

Natural gas pressure regulator Ares N

diaphragmsingle-stagestainless steel

The pressure regulator ARES N is self operated with lever action, designed for residencial and comecial applications, as well as burner systems of small size. The design assure high set pressure accuracy for a wide range of inlet pressure and totally tightness with low lock-up. The pressure regulator ARES N can be utilized with natural gas or LPG, or other non corrosive gases and has versatility of utilization regarding the installation position; it can be in vertical or horizonta, beyond allowing to change the diaphragm case in any angle in relation to the body. Because of its robust and simple design, its maintenance is done quickly and, with additional advantage, due of top entry design, it is not necessary to remove the body valve from the pipe for obturator, seat or diaphragm inspection. Materials: Body: Ductile Iron Seals: Buna N Connections: NPT / BSP Limits of Operation: Shutoff Pressure Range: 20 a 600 mbar Maximum Inlet Pressure: 10 bar Applications NG LPG Combustion
