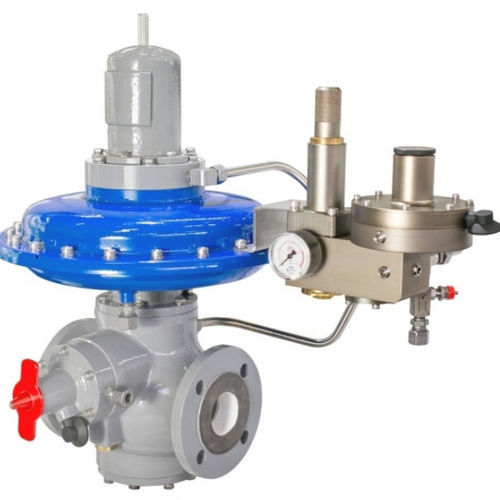

Natural gas pressure regulator Brise Plus
for hydrogendiaphragmsingle-stage

natural gas pressure regulator
natural gas pressure regulator
natural gas pressure regulator
natural gas pressure regulator
Add to favorites
Compare this product


Characteristics

Product
for hydrogen, for natural gas
Technology
diaphragm
Number of stages
single-stage
Material
brass, stainless steel, iron
Applications
industrial
Other characteristics
flange
Pressure

Max.: 4 bar
(58.02 psi)

Min.: 0.02 bar
(0.29 psi)

Orifice diameter

1 in, 2 in, 3 in

Temperature

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Description

Brise Plus Series is recognized by high flow capacity and excellent outlet pressure accuracy. It was designed with balanced internals assuring stability of pressure control even in case of inlet pressure variation. Body construction allows to incorporate slam shut valve for overpressure shutoff resulting in final equipment with excellent performance and safety. Depending of application during flow consumption it is common to have changes of flow rate; Brise Plus Series has the characteristic of fast response assuring that gas will be delivered without variation of set pressure. The pressure regulator Brise Plus has CE Stamp. Materials: Seals Buna N Connections: Thread female NPT / BSP or Flangs ANSI 150#RF / DIN PN 16 Other connections and sizes under consult.
