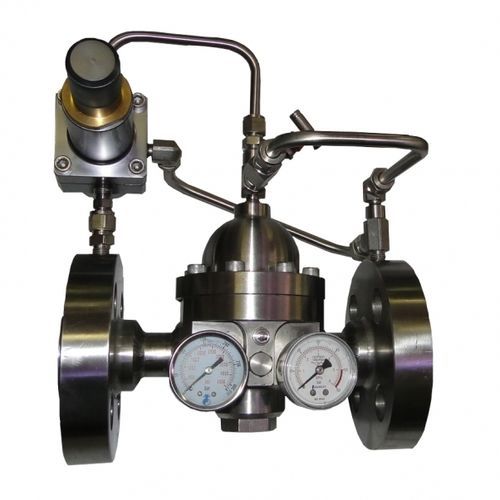

Natural gas pressure regulator Domusfor hydrogendiaphragmspring
Add to favorites
Compare this product
Characteristics
- Product
- for hydrogen, for natural gas
- Technology
- diaphragm, spring
- Number of stages
- single-stage
- Material
- stainless steel
- Applications
- industrial
- Other characteristics
- flange
- Pressure
Min.: 1 bar
(14.5 psi)Max.: 110 bar
(1,595.42 psi)- Orifice diameter
1 in, 2 in, 3 in, 4 in
- Temperature
Min.: -30 °C
(-22 °F)Max.: 120 °C
(248 °F)
Description
The pressure regulator DOMUS is pilot operated type specially designed for applications with high inlet pressure. With body and internal parts material in stainless steel the pressure regulator DOMUS can be utilized with Natural Gas, Nitrogen, Oxygen, Hydrogen and other non-corrosive gases.
The main applications of a big variety that this pressure regulator can be applied are:
Natural Gas Decompression Stations
Well head
Virtual Pipeline
Industrial Processes where it is used high pressure cylinders of N2, H2 and Natural Gas
High Pressure Testing Benchs
Materials:
Seals: Buna N
Connections:
Flange 150# up to 2500#
Applications
CNG
