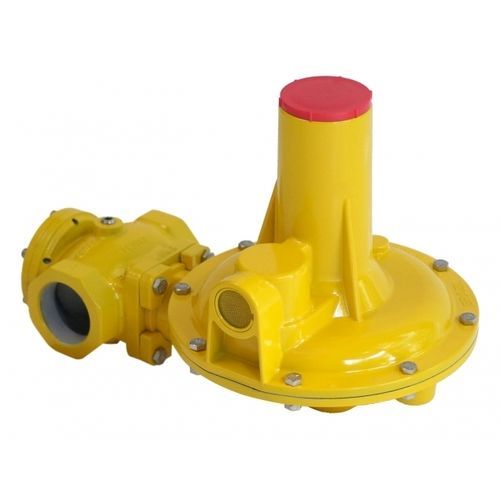

Natural gas pressure regulator GA-302-8for hydrogendiaphragmsingle-stage
Add to favorites
Compare this product
Characteristics
- Product
- for hydrogen, for natural gas
- Technology
- diaphragm
- Number of stages
- single-stage
- Material
- aluminium
- Applications
- industrial
- Pressure
Max.: 600 mbar
(8.7 psi)Min.: 8 mbar
(0.12 psi)- Orifice diameter
0.55 in, 2 in
- Temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)
Description
The pressure regulator model GA-302-8 was designed to be applied in different applications as small stablishments, builds, residencial and industrial areas. It can be used with all non corrosive gases and equipment for combustion, boilers, industrial stoves, heater exchanges, gas engines, shopping centers etc.
It is extremally easy to instal, adjust and inspect. The inspection is done without necessity to remove the body valve from the pipe. It is also offered with built in slam shut valve.
The pressure regulator and the slam shut valve has CE Stamp.
Materials:
Body: Ductile IronASTM A536
Covers: Aluminium
Internals: Aluminum
Selas / Diaphragm: Buna N
Connections:
1.1/2'' & 2''
Thread NPT Female / Flange ANSI 150# (only for 2'')
Operation Limits:
Temperature: -20°C to 60°C
Regulating: 8 to 455 mbar
Shutoff: 20 to 600 mbar
Applications
hydrogen
NG
LNG
Combustion
