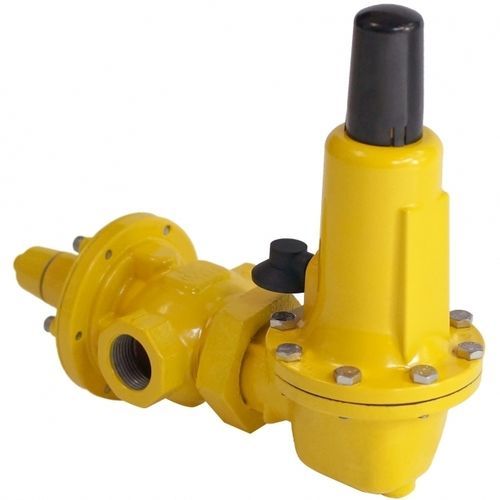

Natural gas pressure regulator Junior 070diaphragmsingle-stagestainless steel
Add to favorites
Compare this product
Characteristics
- Product
- for natural gas
- Technology
- diaphragm
- Number of stages
- single-stage
- Material
- aluminum, stainless steel
- Applications
- industrial
- Pressure
Max.: 2.5 bar
(36.26 psi)Min.: 0.2 bar
(2.9 psi)- Orifice diameter
1 in
- Temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)
Description
The pressure regulator model JR AV is self operated type actuated by internal lever and with internal sensing line (or external under consult). The model also has option of slam shut valve built in.
The main applications:
Natural Gas and LPG Distribution;
First stage of pressure reduction;
Boilers and heaters feed systems;
Applications with non corrosive gases.
The pressure regulator offers outlet pressure accuracy of up to 10% and lock up up to 20%. It is a light valve easy to carry on and install and its construction results in simplicity of operation. Also available in the active / monitor regulating system.
