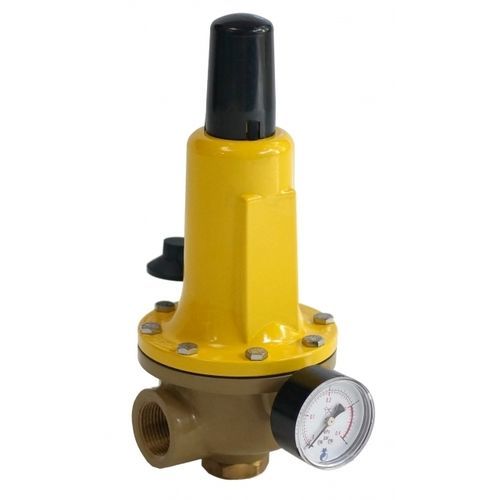

Natural gas pressure regulator JR CHfor hydrogendiaphragmsingle-stage
Add to favorites
Compare this product
Characteristics
- Product
- for hydrogen, for natural gas
- Technology
- diaphragm
- Number of stages
- single-stage
- Material
- brass, aluminum, stainless steel, carbon steel
- Applications
- industrial, high-pressure
- Other characteristics
- compact, flange
- Pressure
Max.: 12 bar
(174.05 psi)Min.: 0.2 bar
(2.9 psi)- Orifice diameter
0.75 in, 1 in
- Temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)
Description
Keeping the traditional concept of simple, compact and robust design, this new version of model JR CH is an economic and versatile option in the control pressure of first stages in different industrial processes. It has simple maintenance and high versatility of use, proper for applications in large pressure regulating and flow range.
Materials:
Seals:Buna N Viton
Connections:
Thread NPT female or Flanges welded in the body valve
Applications
LPG
Air Gases
Catalogs
No catalogs are available for this product.
See all of Gascat‘s catalogs
