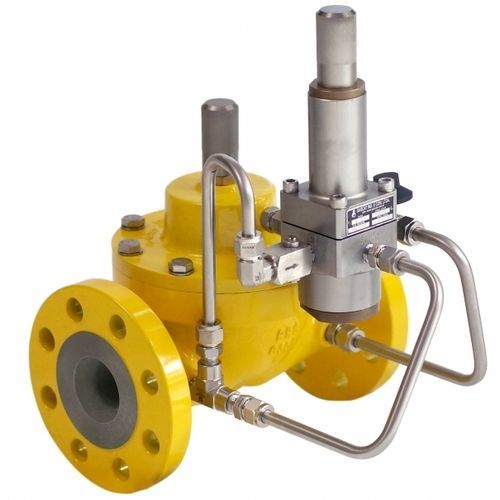

Stainless steel pressure relief valve Argos aluminumbrasspilot-operated
Add to favorites
Compare this product
Characteristics
- Body material
- stainless steel, brass, aluminum
- Other characteristics
- pilot-operated, diaphragm, flange, back pressure, for natural gas
- DN
1 in, 2 in, 3 in, 4 in
- Pressure
Max.: 45 bar
(652.7 psi)Min.: 0.7 bar
(10.2 psi)
Description
The partial pressure relief valve model ARGOS Back Pressure (or Relief Valve) is pilot operated and controls upstream pressure instead of downstream. It has a simple construction design and few internal components becoming the maintenance quick and easy. The pilot is responsible to adjust set point and offers several springs for pressure regulation as well excellent accuracy. Beyond this, the project allows the possibility of operation as partial pressure relief or back pressure.
Materials:
Body: Carbon Steel ASTM A216 Gr. WCB
Seals: Buna N
Diaphragm: Buna N / Hydrin
Connections:
Flanged ANSI 150#RF / 300#RF
Other connections and sizes under consult.
Operation Limits
Temperature: -10°C to +60°C
Applications
hydrogen
CNG
LNG
