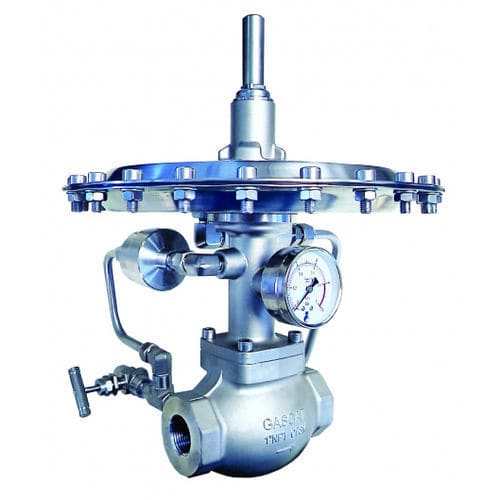

Diaphragm valve Celtic N

leverblanketingstainless steel

The valve CELTIC-N is a new model developed by Gascat Engineering to use in blanketing systems. Blanketing systems is a process of using an inert gas such as nitrogen or carbon dioxide, in storage tanks to maintain a positive pressure and neutral environment above fluid surface. Tank blanketing systems advantages: Prevents product oxidation avoiding air contamination; Protects the tank from corrosion and reduces the possibility of tank wall collapse during pumping out operations; Decrease drastically the amount of combustible vapor keeping the mixture below the ignition point; Prevents a stored product from vaporizing into the atmosphere. Tank blanketing systems have several applications in widely industrial blanks such as: chemical, pharmaceutical, food and petroleum industries. The CELTIC N is build totally in stainless steel and the diaphragm in FEP result in compatibility with practically all blanketig processes. Materials: Body: Stainless Steel ASTM A351 Gr. CF8M Covers: Stainless Steel ASTM A240 Tp.316 with polished finishing Internals: Totaly AISI 316 Seals: Viton (Kalrez, Chemraz, etc. under consult) Diaphragm: FEP Connections: 1'' & 2'' Thread NPT (for 1'') or Flange ANSI 150#RF Operation Limits: Pressure Regulating: vacuum -12mmca / +5mmca a 230mmca Maximum Inlet Pressure: 8 bar Applications Blanketing Systems Air Gases
