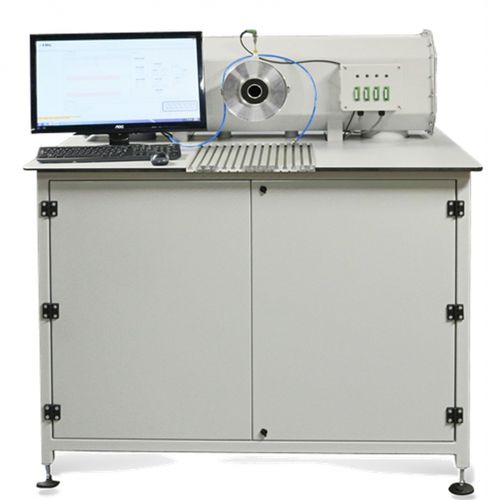

Pressure calibration bench

automatic

The FMG series of calibration centre is designed for testing and calibration of all commonly used gas meters such as diaphragm, rotary, turbine and ultrasonic gas meters. The CC series can be operated manually, automatically and/or remotely. The CC series uses state of the art technology to assure the best performance with a minimum of maintenance and operational costs. Optionally, the calibration centre can be equipped with two small master meters FMR-REF4 which are compared automatically during the daily operation. With this comparison and regular checks at overlapping flow rates of the master meters, the performance of the centre is checked and monitored automatically, giving the advantage that an expensive regular re-calibration to recognized standards, is not needed. An advanced real time measurement system, able to compare up to 16 HF pulse sources simultaneous, reduces the test time significantly without degradation of the accuracy. Able to operate with diphragm, rotary and turbine meters Size up to ND150 Totally automatized Rotary meters time test < 5 minutes Turbine meters time test (HF) < 10 minutes Auto verification (Diagnostic) NMi traceability Applications NG
