Gas sampling system MSSH

automaticfor analysis

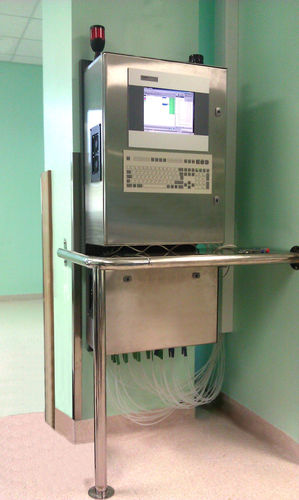

Gasmet Multipoint sampling system (MSS) The Gasmet MSS is designed for continuous monitoring of multiple measuring points. It’s designed to work as an integral part of the Gasmet FCX measuring system. The Gasmet MSS is used for on-line measurements. It is an ideal tool to measure components of interest in ambient conditions from several measuring points. The sample pump, valves, filter and sample lines are at ambient temperature and the system can be used to measure gases which are non-condensing. The Gasmet MSS is built in a wall mounted stainless steel case which includes all valves, a flow meter, a pump and a filter. Standard setup includes four (4) sample gas input lines and one pump. Zero gas, span gas 1 and 2 inputs as well safety air inputs with flow meters are included as a standard. The function of the MSS is fully automatic and controlled by the Calcmet software. Sample flow and instrument air pressure alarms are provided. As an option MSS can be equipped up to 32 sample gas input lines and with a second sample gas pump to reduce the system response time. The Gasmet MSSH is designed for continuous monitoring of multiple measuring points. It is designed to work as an integral part of the Gasmet CEMS or FCX measuring systems. MSSH unit can be used as sampling system with pump for FCX system or as sample point switching box without pump with CEMS.
