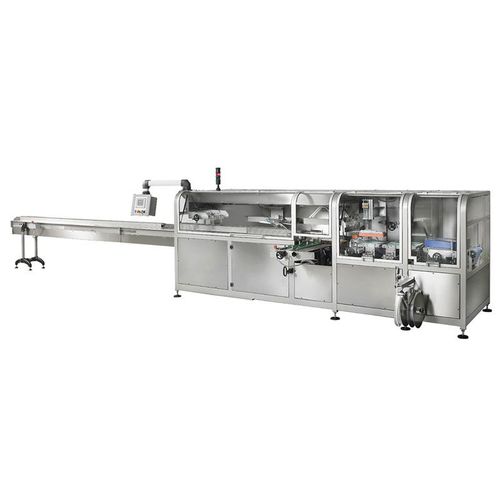

Horizontal bagging machine Mod. IMA-100

HFFSautomaticfor the food industry

Automatic bagging machine Suited for the automatic high speed packaging of products in preformed bags. Touch screen panel with programmable memory. Automatic bagging head, composed by a single pushing arm, with synchronized speed with the bagging phase. Automatic bag opening unit with air blow and mechanical gripper system. Automatic bag storage. Product loading inlet conveyor belt. Electric panel with centralized controls, electric emergency devices built to standards and Plexiglas protection screen. Sturdy painted steel support structure. OPTIONAL Head for in-line clipband closing Printer on clip. 90° outlet conveyor belt for closing head equipment other than clipband closing. Sealing bar for the sealing of the bag upper side. Designed for in-line combination. QUICK INFORMATIONS MAX. PRODUCT LENGTH 400mm MAX. PRODUCT WIDTH 200mm * MAX. PRODUCT HEIGHT 150 MM * PRODUCTION 40-42 buste/min. POWER 7 Kw WEIGHT 2200 Kg
