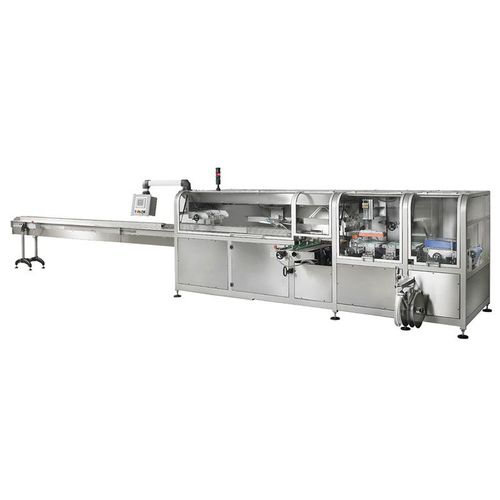

Horizontal bagging machine Mod. IMA-100P

flow-packautomaticfor the food industry

Automatic bagger machine Suitable for the automatic packaging of the products in preformed bags Touch screen panel and programmable memory Automatic bagging head, composed by a pliers inserter, with synchronized speed with the bagging phase Automatic group for bags opening with air blowing and mechanical grippers system to keep bags open Automatic bags store for 3 bags stacks Products loading entry conveyor Electric panel with centralized controls, emergency power according to regulations and protection plexiglass Heavy duty design in painted steel OPTIONAL Closing head for Clip inline Printer on clip Exit conveyor at 90° for equipment closing head different from clip Double pushing arm for products insertion Sealing arm for the sealing of the bag upper side Predisposition for the inline combination QUICK INFORMATIONS MAX. PRODUCT LENGTH 400mm MAX. PRODUCT WIDTH 200mm * MAX. PRODUCT HEIGHT 150mm * PRODUCTION 40-42 buste/min. POWER 7 Kw WEIGHT 2200 Kg
