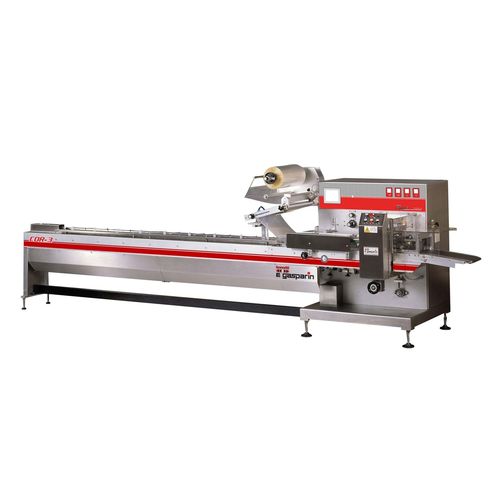

Horizontal bagging machine Mod. COR-3flow-packservo-drivenfor the food industry
Add to favorites
Compare this product
Characteristics
- Type
- horizontal
- Technology
- flow-pack
- Operational mode
- servo-driven
- Application domain
- for the food industry
- Throughput
Max.: 100 p/min
Min.: 90 p/min
Description
Flow-wrapping machine
Suited for the continuous flow-wrapping of products at high productivity in continuous cycle
Electromechanical version
Bag packaging speed: 80/90 units/minute, adjustable by inverter
Three pairs of pneumatic closing wheels
Pneumatic short/long step change
Fixed forming box
Product loading inlet conveyor belt
Electric panel with centralized controls; electric emergency devices built to standards and plexiglass protection screen
Sturdy painted steel support structure
OPTIONAL
Print centering photocell unit
Printer
Double sealing jaw
Double reel-holder, version with automatic change available on request
Zigzag-type blade
Adjustable forming box
Designed for in line combination
Alcohol sprayer system
QUICK INFORMATIONS
MAX. PRODUCT LENGTH
380mm *
MAX. PRODUCT HEIGHT
100 MM *
PRODUCTION
90-100 conf./min.*
POWER
4,5 Kw
WEIGHT
1300 Kg
