SF6 leak detector Quicker Sniffer
infraredportable

SF6 leak detector - Quicker Sniffer - GasQuip - infrared / portable
SF6 leak detector - Quicker Sniffer - GasQuip - infrared / portable
SF6 leak detector - Quicker Sniffer - GasQuip - infrared / portable - image - 2
SF6 leak detector - Quicker Sniffer - GasQuip - infrared / portable - image - 3
SF6 leak detector - Quicker Sniffer - GasQuip - infrared / portable - image - 4
Add to favorites
Compare this product


Characteristics

Detected fluid
SF6
Technology
infrared
Other characteristics
portable

Description

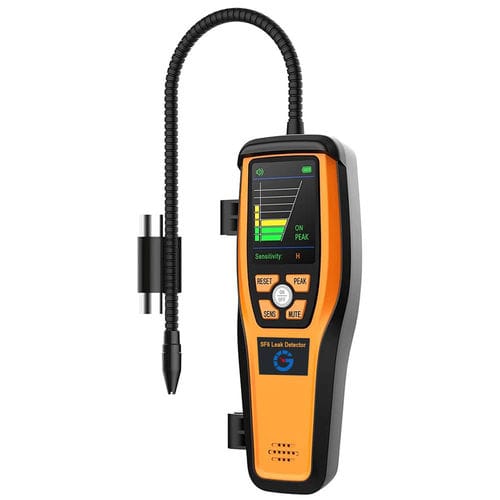

The GasQuip GQ-IRLD “Quicker Sniffer” is a handheld SF6 Leak Detector that contains a robust infrared sensor to accurately detect even the smallest SF6 leaks. 10 year rated sensor life 3 Sensitivity levels: High/Medium/Low Sensitivity of 5 PPM on High setting 6 Hour Battery Life: 3000mAh lithium battery LCD Screen Peak Button Function: Marks the maximum leakage rate value during measurement Alarm Mode: Visual & Audible Attachable UV Light Flexible Probe 2 year standard warranty The GasQuip SF6 Leak Detector is designed for pinpointing hard to find SF6 leaks in the field. The all day battery life and bright LCD screen ensure that a technician can quickly find a leak in any conditions. The sensor works by passing light through a chamber with the sample inside. There is an optical filter in front of the detector to eliminate all wavelengths of IR except the one absorbed by the gas. The gas concentration is measured by the absorption of a specific wavelength. A higher quantity of that wavelength being received by the detector will result in a lower reading. Less light reaching the sensor results in a higher reading. Extremely fast response time & precise readings, +0.5% No cross sensitivity Impervious to arc byproducts 1 x Leak Detector 1 x USB Cable 1 x Power Adapter 1 x UV light 1 x Packet of Filters 1 x Case When operating a handheld leak detector, it is best practice to start the device out on the highest setting, which measures down to 5 ppmv sensitivity. As you start to find a leak, lower the sensitivity because the source of the leak will have the highest concentration of SF6.

VIDEO
