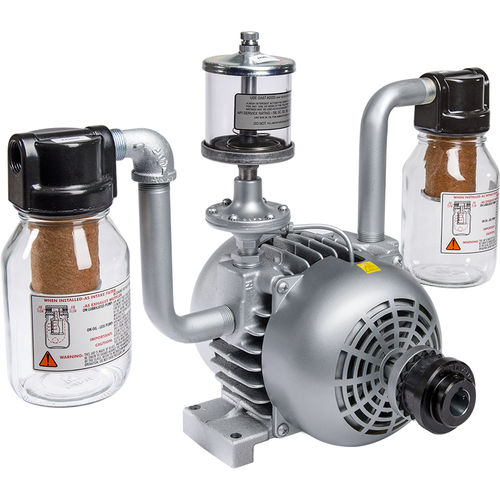

Rotary vane vacuum pump 2565 series

lubricatedsingle-stagefor laboratories

Power 1-1/2 hp ( 1.1 kW ) Max Flow (50 Hz) 16.5 cfm ( 28.0 m3/h ) Max Flow (60 Hz) 21.0 cfm ( 35.7 m3/h ) Max Pressure (50 Hz) 25 psi ( 1.7 bar ) Max Pressure (60 Hz) 25 psi ( 1.7 bar ) Max Vacuum (60 Hz) 28.0 in-Hg ( 65.0 mbar abs ) Weight 38 lbs ( 16 kg ) Min Temperature 33.8 °F ( 1 °C ) Max Temperature 104 °F ( 40 °C ) Product Details The easy to install, rugged 2565 allows for higher vacuum levels and provides better internal corrosion protection and longer life. Their internal sound suppression results in lower operating noise levels, which makes them well suited for noise sensitive environments like medical, dental and laboratory applications. In addition, these compact units offer high flow, pulse free air– making them ideal for applications requiring consistent air pressure and air flow. Separate Drive The separate drive allows customer to select the motor technology (AC, DC, BLDC) that best suits their needs and application. Variable speed motors can be used to control the amount of air flow. Low Maintenance Vanes and filters are easily serviceable to extend the life of the product and maximize uptime. Compact Compact units offer high flow capacities for a given size – Small size makes units easy to integrate into OEM systems Includes Includes Filter, Pressure/Vacuum Lubricator, Pressure Gauge, Muffler, Oil Reservoir, Fan Guards, Fan, Coupling Assembly, Filter, Oiler and Cooling Fan.
