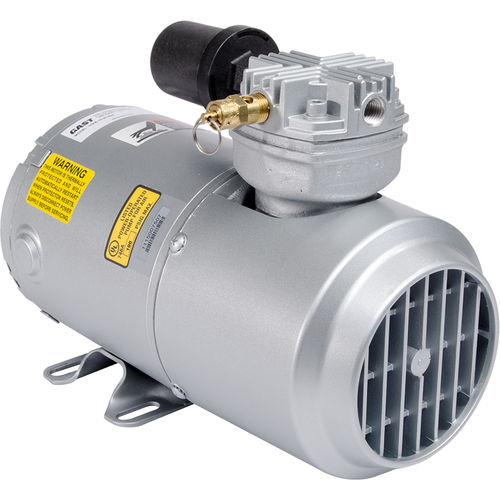

Piston compressor 1H

airelectrically-poweredstationary

Power 1/6 hp ( 0.12 kW ) Max Flow (50 Hz) 1.3 cfm ( 2.2 m3/h ) Max Flow (60 Hz) 1.3 cfm ( 2.2 m3/h ) Max Pressure (50 Hz) 100 psi ( 7 bar ) Max Pressure (60 Hz) 100 psi ( 7.0 bar ) Weight 17 lbs ( 8 kg ) Min Temperature 32 °F ( 0 °C ) Max Temperature 104 °F ( 40 °C ) Product Details Compact, rugged, and durable design the 1H series piston features oil-less operation, piston ring design that provides consistent flows throughout the service life of the unit, and high torque motors. Built to last, the 1H series also features corrosion resistant internal components, easily replaceable wear items and proprietary Teflon filled piston rings, help to maximize uptime and minimize downtime. Oil-Less Operation Ensure discharges of air remain free of contamination from lubricants with the 1H series Oil-less operation. Corrosion Resistant Extended life is provided by corrosion resistant internal components such as aluminum heads and valve plates or anodized cylinder and stainless steel valves. Long Service-Free Life Maximize uptime with simple field service capability featuring wear items that are easily replaced and maintenance free. The 1H series also features a piston ring that provides consistent flows throughout the service life of the unit and is filled with proprietary Teflon for longer life. Rugged Construction Built to withstand even the harshest operating conditions the 1H series is suitable for even the most demanding applications.
