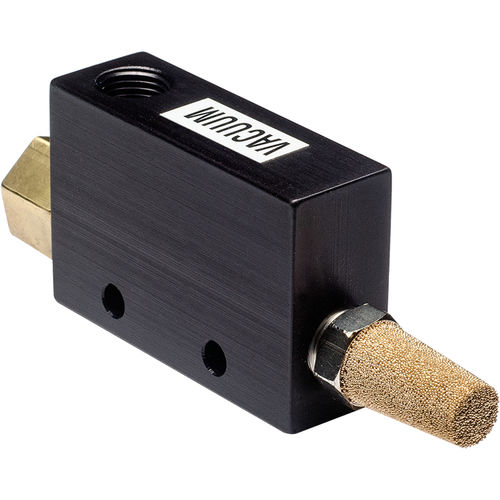

Oil-free Venturi ejector VG-010-00-00

single-stagecompact

Max Flow 1.0 cfm ( 1.6 m3/h ) Max Vacuum 27.0 in-Hg ( 99.0 mbar abs ) Weight 0.1875 lbs ( 0 kg ) Min Temperature 4 °F ( -15 °C ) Max Temperature 125 °F ( 52 °C ) Max Speed 40 rpm Product Details The VG-010-00-00 series is compact in size and very easy to install. They have a lightweight construction and operate on shop air, so they’re very economical to use. Constructed with no moving parts, these Gast vacuum generators require minimal maintenance and operate very quietly. Superior Control Vacuum levels are controlled by adjusting inlet pressure and generators can be cycled on and off by controlling inlet pressure rather than by regulating the vacuum line through venting to atmosphere. Maximum performance and lowest noise is achieved at stated optimum inlet pressure. Minimal Maintenance Plan for virtually no down time. The units can be flushed with soap and water and reassembled in 2 minutes – all without removing the generator from its mounting location. Low Cost Pricing that’s well below foreign imports is only part of the picture. Combined with ease of installation, control and maintenance, it means that your total investment is far less when you use Gast Manufacturing vacuum generators.
