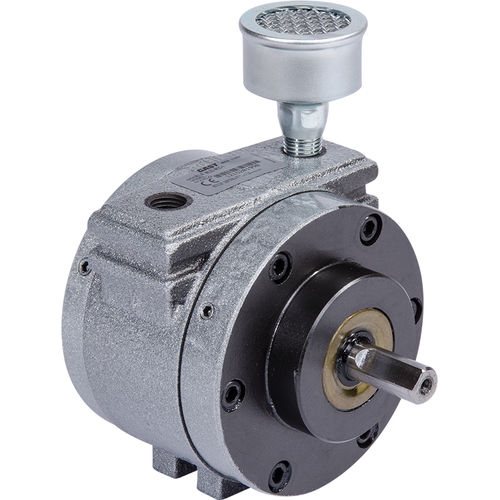

Gear air motor NL32 series

ATEXcompact

Power 0.42 hp ( 0.31 kW ) Max Speed 2000 rpm Torque @ Max Speed 13.5 lb-in ( 1.5 Nm ) Max Air Consumption 30 cfm ( 51.0 m3/h ) Speed @ Max Torque 300 rpm Max Torque 2.1 lb-in ( 2.5 Nm ) Product Details The compact and portable NL32 series offers air motor operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. The NL32 series requires no lubrication, which eliminates oil costs and the need to periodically inspect air motor lubrication systems. With no lubrication in the system, the air exhausted into the work area is free of oil aerosol contamination. In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations. Corrosion resistant Treated body, rotor, and end plates for corrosion resistance. Mounting Options Available in hub or foot mount configurations (with optional foot kit AL220) configurations, Gast air motors can operate in any position – offering you a great degree of flexibility when mounting the air motor or integrating the air motor into an OEM system. Product Marking This product is marked: II 2 G D c T4 (+1 ℃
