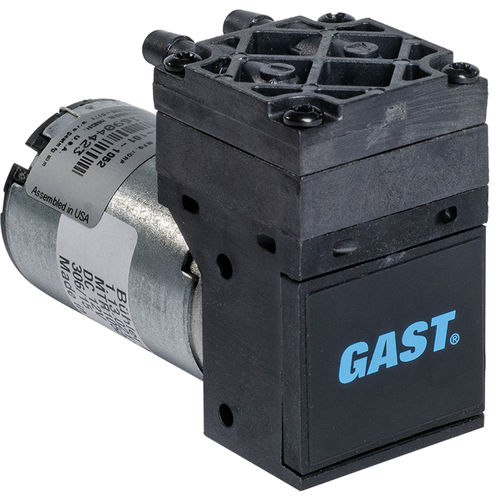

Diaphragm vacuum pump 10D series

oil-freesingle-stagecompact

Power 1/125 hp ( .008 kW ) Max Flow (DC) ( 4.3 lpm ) Max Pressure (DC) 15 psi ( 1.0 bar ) Max Vacuum 14.0 in-Hg ( 526.0 mbar abs ) Weight 0.5 lbs ( 0 kg ) Min Temperature 40 °F ( 5 °C ) Max Temperature 104 °F ( 40 °C ) Product Details The compact, lightweight 10D Series offers oil-less operation and is well suited for noise sensitive environments. It can be mounted in any plane and has a durable design, which contributes to its flexibility and long service life. Additionally, the unit requires minimal power and can be used as a compressor or vacuum pump for maximum versatility. Electromagnetic Interference (EMI) Suppression The Motor is equipped with Electromagnetic Interference (EMI) Suppression, which protects sensitive electronics in your equipment from Electromagnetic Interference EPDM Valves and Diaphragm The EPDM (Ethylene Propylene Diene Monomer) valve and diaphragm provide outstanding resistance to heat, ozone, and oxidation. Durability & long life The connecting rod is bonded to the bearing not clamped as in lighter duty pumps. The unit runs at cool operating temperatures, and has corrosion resistant materials – all of which add to the long service life. Liquid tolerant Robust valve design is tolerant of small amounts of intake liquid. Chemically resistant PPS Chemically resistant PPS (Polyphenylene Sulfide) for all other wetted components, which provides maximum chemical, heat and corrosion resistance.
