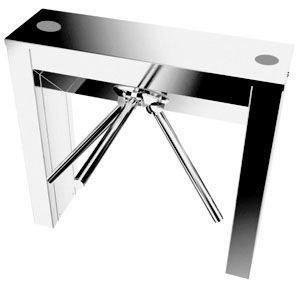

Tripod turnstile BR2-TM

PURPOSE Low gate for controlling pedestrian traffic in guarded areas. The device is intended for facilities with high quality finishing. CASING The casing is made of 1.4301 (EN 10088) ground stainless steel. The access to the inner systems of the gate is secured with a key operated lock. Fastened to the floor with anchors, e.g. glued ones. WAY OF OPERATION The two-way system allows for controlling the pedestrian traffic in both directions or one, selected direction. Diode pictograms placed on the gate cover determine the locked/unlocked status of the gate. The red cross - gate closed, green - arrow - gate open. The electromechanical power motion of the arms makes passing (traffic) easy and supports the automatic locking of the arm system. CONTROL SYSTEM After the processor system receives a signal (free of potential) from an external device, it takes over an overall control of the system, i.e. enabling and disabling the motion of arms, and sends the feedback signal after the transfer cycle. The control system is prepared to work with access control systems.
