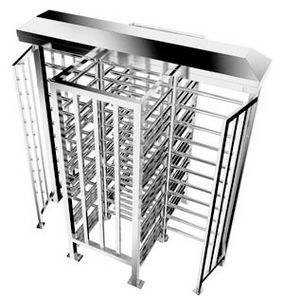

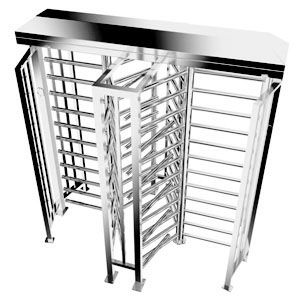

Full-height turnstile BR3-2-3

PURPOSE A high double gate for traffic control in guarded areas, intended for cooperation with access control systems. CASING The rotor is made of 1.4301 (EN 10088) ground stainless steel or S235JR powder painted steel (EN10025:1996). The frame is optionally made of: stainless steel / zinc plated steel / powder painted steel. The access to the gate internal mechanism is secured with a keyoperated lock. Fastened to the floor with anchors, e.g. glued ones. WAY OF OPERATION The two-way mechanism enables traffic control in both directions or in a selected direction. The diode pictograms, situated on the gate frame, indicate the gate locked/unlocked status. The red cross indicates the passage closure, the green arrow indicates the passage opening. The electromechanical power motion of the arms facilitates smooth passing (traffic) and supports the automatic locking of the arm system. CONTROL SYSTEM After the processor system receives a signal from an external device (free of potential), it takes over a overall control of the system, i.e. enabling and disabling the arm motion, and sends the feedback signal after the transfer cycle is completed. The control system is prepared to work with access control systems.
