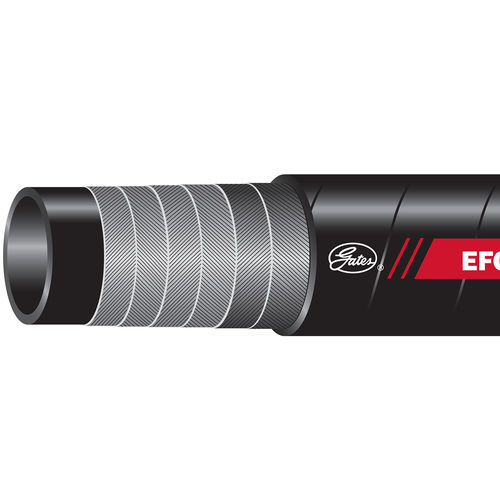

Hydraulic hose EFG5K alcoholfor oilNBR
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic, alcohol, for oil
- Material
- NBR, CR
- Applications
- high-pressure
- Other characteristics
- fire-resistant, spiral wire
- Inner diameter
Max.: 51 mm
(2.008 in)Min.: 9.5 mm
(0.374 in)- Outer diameter
Max.: 71.1 mm
(2.799 in)Min.: 27.6 mm
(1.087 in)- Pressure
350 bar
(5,076.321 psi)- Temperature
Max.: 121 °C
(249.8 °F)Min.: -40 °C
(-40 °F)
Description
Recommended for extremely high pressure and high impulse hydraulic applications. EFG5K is designed to meet or exceed all requirements of ISO 3862 R13 specifications and performance requirements of EN 856 4SP (-10 to -32) and EN 856 4SH (-20 to -32). Recommended Couplings: -6 to -20: GlobalSpiral™; -24, -32: GlobalSpiral™ Maximum.
Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of EN 856 R13 and SAE 100R13 bend radii (except -32).
FEATURES AND BENEFITS
Up to 40% of EN 856 4SP/4SH bend radius at rated working pressure.
EFG5K MegaSpiral™ is rated at 1/2 bend radius of SAE 100R13.
Type approvals: DNV, GL, LR, BV and ABS.
Cover: MSHA approved.
