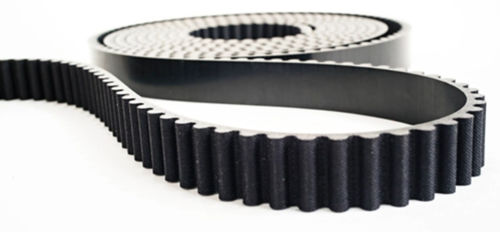

Timing belt SYNCHRO-POWER™ LINEAR
TPUthermoplasticpositioning

timing belt
timing belt
timing belt
timing belt
Add to favorites
Compare this product


Characteristics

Type
timing
Material
TPU, thermoplastic
Product applications
positioning, for machines, for lifting applications, for doors
Sector
for the textile industry
Hardness
92 shore A
Other characteristics
low-noise, high-performance, abrasion-resistant, oil-resistant, chemical-resistant
Length

Max.: 1,200 mm
(47.24 in)

Min.: 480 mm
(18.9 in)

Width

Max.: 102 mm
(4.016 in)

Min.: 48.5 mm
(1.909 in)

Thickness

Max.: 10 mm
(0.39 in)

Min.: 2.2 mm
(0.09 in)

Pitch

Max.: 20 mm
(0.787 in)

Min.: 3 mm
(0.118 in)

Temperature

Max.: 70 °C
(158 °F)

Min.: -5 °C
(23 °F)

Description

Gates TPU Linear Timing Belts provide exceptional performance in conveying and precision motion control applications. We offer two potential constructions to meet your application needs – welded endless and open ended. A variety of tooth pitch, length, and material combinations are available that cover a wide range of possible configurations for your specific application. High tensile strength and stiffness offer superior performance across a broad spectrum of demanding applications. Parallel cord construction ensures that no cords are exposed at belt edges and provide superior tracking and uniform tensioning. Nylon back and tooth surface options are available for quieter operation and reduced friction. Numerous customization options available. APPLICATION ADVANTAGES YOU CAN COUNT ON. Linear Timing Belts provide the greatest degree of flexibility for both synchronous conveying and linear positioning applications. Gates TPU manufactures linear timing belts in a variety of tooth pitch, length, and material combinations. This broad offering, combined with our extensive fabrication capability, provides a wide range of possible configurations to meet your application requirements. Available in multiple constructions: welded endless, open ended, and mechanically fastened. FEATURES AND BENEFITS Countless customization options offered by our broad fabrication capabilities, including welded profiles, added backings, and numerous machining options, such as grinding, punching, and slitting. Durable and clean running, these belts provide quiet and positive motion for industrial, general conveying, automatic door applications, etc.
