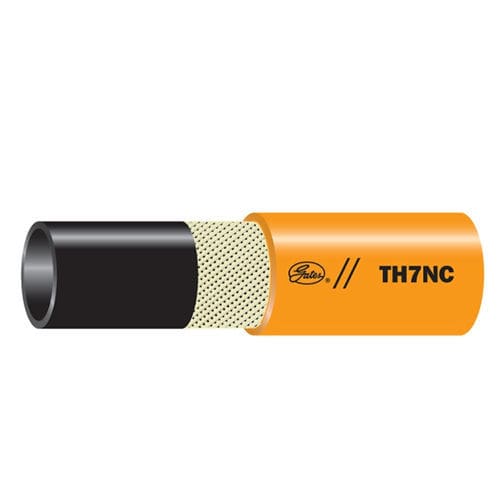

Hydraulic hose TH7NC thermoplasticPAPU
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- PU, thermoplastic, PA
- Inner diameter
Max.: 25 mm
(0.984 in)Min.: 6 mm
(0.236 in)- Outer diameter
Max.: 33.4 mm
(1.315 in)Min.: 12.7 mm
(0.5 in)- Pressure
280 bar, 560 bar, 632 bar, 700 bar, 768 bar
(4,061.057 psi, 8,122.113 psi, 9,166.385 psi, 10,152.642 psi, 11,138.898 psi)
Description
TH7NC non-conductive hydraulic hose is recommended for petroleum and synthetic hydraulic fluids. Applications include power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery. Orange color TH7NC meets SAE 100R7 non–conductivity requirements and meets or exceeds performance requirements of SAE 100R7 with a significantly tighter bend radius.
For use with MegaCrimp™ Couplings [G25 Series] and Swage PCTS Couplings [G51 Series] (-2 and -3 only).
Meets SAE 100R7 Electrical Conductivity Test. Maximum leakage should not exceed 50 microamperes when subjected to 75 kV/Ft. for five minutes.
Meets ANSI A92.2 for vehicle mounted aerial devices.
Catalogs
No catalogs are available for this product.
See all of Gates‘s catalogs
