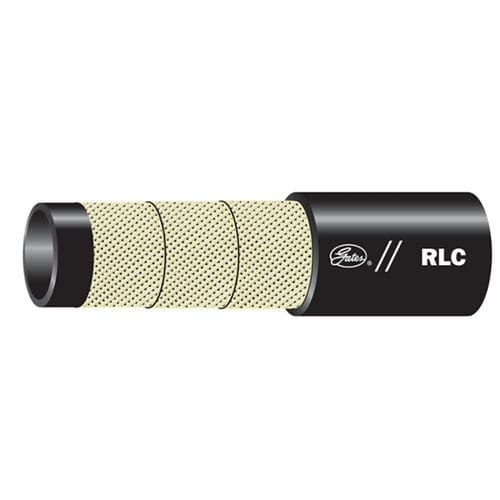

Hydraulic hose RLC for airfor waterfor oil
Add to favorites
Compare this product
Characteristics
- Use
- for water, hydraulic, for air, for oil
- Material
- nitrile
- Applications
- transfer, low-pressure, for hydraulic systems
- Other characteristics
- braided
- Inner diameter
25.4 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm
(1 in, 1.5 in, 2 in, 2.5 in, 3 in)- Outer diameter
41.1 mm, 53.8 mm, 65 mm, 79.2 mm, 91.9 mm
(1.618 in, 2.118 in, 2.559 in, 3.118 in, 3.618 in)- Pressure
150 psi, 200 psi
- Temperature
Max.: 149 °C
(300.2 °F)Min.: -40 °C
(-40 °F)
Description
Recommended for petroleum-based hydraulic oils, glycol antifreeze, air or water in low pressure fluid transfer or hydraulic system return lines. Generally connected to 100R4 stems, beaded nipples, or tube type ports with worm gear clamps. Recommended Couplings: Use Barbed Stem or Beaded Tube with Clamps Only.
Temperature Range:
Air Only:
+71°C
+160°F
