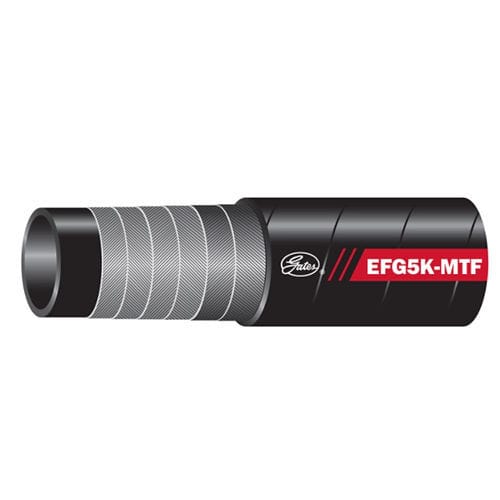

Recommended for extremely high pressure and high impulse hydraulic applications. EFG5K-MTF is designed to meet or exceed all requirements of ISO 18752 Grade D and SAE100R13 specifications and performance requirements of EN 856 4SH (-16 and -20), EN 856 4SP (-10, and -12), EN 856 R13, and ISO 3862 Type R13 (-12, -16, -20, -24, -32). Recommended Couplings: GlobalSpiral™ Couplings (-6 through -20), GlobalSpiral™ MAX Pressure Couplings (-24 and -32), Stainless Steel S Couplings.
Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of EN 856 R13 and SAE 100R13 bend radii (except -32).
FEATURES AND BENEFITS
-6 to -20 validated with GlobalSpiral™; -24, -32 with GlobalSpiral™ Maximum.
Up to 40% of EN 856 4SP/4SH bend radius at rated working pressure.
EFG5K-MTF MegaSpiral™ is rated at 1/2 bend radius of SAE 100R13.
Meets Flame Resistance Acceptance Designation MSHA 2G.
Type approvals: DNV, GL, LR, BV and ABS.
5000 PSI constant pressure for all ID's.
