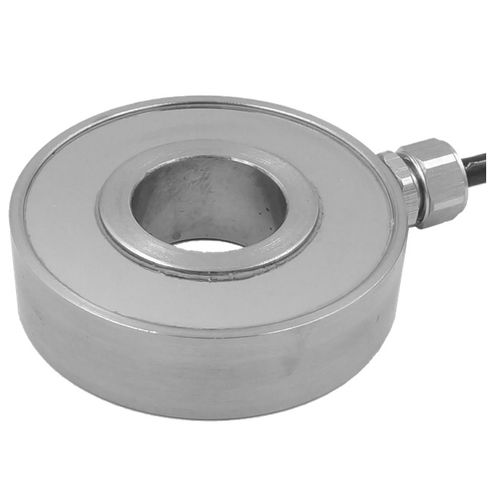

Compression load cell TSR029

ringstainless steel

Features & Applications -Low profile，small deflection and mini dimension -Made of stainless steel -,IP66 protection, customizable -Suitable for Automotive press fit, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing and control system SpecificationsTechnique Capacity0.1,0.2,0.5,1,2,3,5kN Rated output1.5±20%mV/V Zero balance± 0.05mV/V Non-linearity0.20%F.S. Hysteresis0.20%F.S. Repeatability0.10%F.S. Creep(30min)0.10%F.S. Temp.effect on output0.05%F.S./10℃ Temp.effect on zero0.05%F.S./10℃ Input impedance780±20Ω Output impedance700±10Ω Insulation≥5000MΩ/100VDC Recommended excitation5~15V Maximum excitation20V Compensated temp range-10~60℃ Operation temp range-20~80℃ Safe overload150%F.S. Ultimate overload200%F.S. Cable sizeΦ4×4000mm Weight approx.0.2kg MaterialStainless Steel IP ClassIP66
