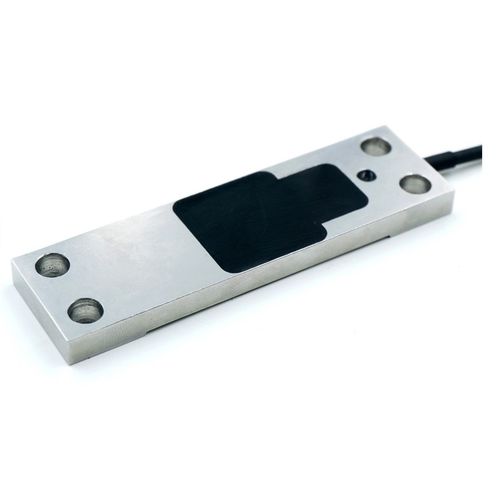

Strain sensor for dynamic applications TS910

for static applications4-screw

Features & Applications simply bolted into place IP65 protection For the measured objects of static and dynamic load monitoring. such as cranes, presses and roll stands and Punch equipments SpecificationsTechnique Capacity500μm/m Rated output1.5±10%mV/V Zero balance±5% F.S. Temp.effect on output0.2%F.S./10℃ Temp.effect on zero0.5%F.S./10℃ Input impedance1000±10Ω Output impedance1000±10Ω Insulation≥5000MΩ/50VDC Recommended excitation5~10V Maximum excitation15V Compensated temp range-10~40℃ Operation temp range-20~60℃ Safe overload150%F.S. Ultimate overload300%F.S. Cable sizeΦ3×2000mm MaterialStainless Steel Weight approx.0.4kg IP ClassIP66
