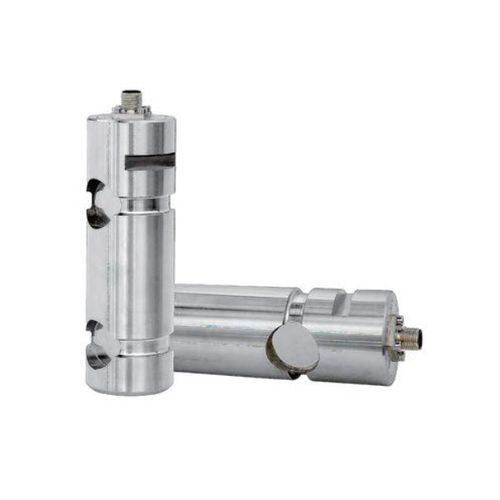

Load pin TS904

Features & Applications Made of stainless steel, long term stability Used for ports,terminals and cargo cranes as well as hoist, lifting equipment and safety testing applications Shape and size is customized SpecificationsTechnique Capacity50kN Rated output1.0±5%mV/V Zero balance±2% F.S. Non-linearity0.5%F.S. Hysteresis0.2%F.S. Repeatability0.2%F.S. Creep(30min)0.05%F.S. Temp.effect on output0.05%F.S./10℃ Temp.effect on zero0.05%F.S./10℃ Input impedance750±30Ω Output impedance700±10Ω Insulation≥2000MΩ/100VDC Recommended excitation10V Maximum excitation15V Compensated temp range-10~60℃ Operation temp range-20~80℃ Safe overload150%F.S. Ultimate overload300%F.S. Cable sizeM12×1-4P MaterialStainless Steel Weight approx.1.8kg IP ClassIP67
