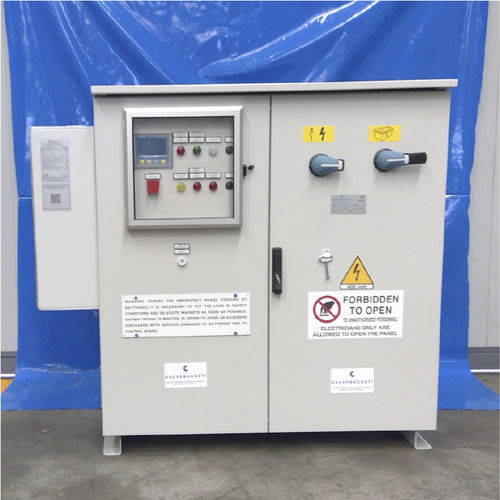

Electric switchboard

for industrial applications

Switchboards are equipment designed to power and control the operation of lifting machines and accessories manufactured by gauss magnets. Our electronic equipment has the following main features: 01– Four quadrant digital converter; 02– Continuous regulation of the magnetic flux with potentiometer; 03– Power reduction through the “tipping” function for the release of excess material; 04– Counter-excitation with energy regeneration to allow a faster load release; 05– Magnet excitation time control to avoid coil overheating ; 06– Automatic intervention and recovery system, with a Pb or Ni-Cd battery pack, which intervenes in the event of a power failure and constantly monitors the battery charge status; 07– Front panel HMI with information relating to panel status and alarms; 08– “Forcing” of the voltage option to reduce magnetization times; 09– Preselection option for one or more magnets; 10– Winding temperature control option by means of thermal probes or amperometric relays (especially useful for electromagnets in the anti-heat version); 11– Power cable redundancy option with relative monitoring; 12– Communication option with bridge crane / handling system via Modbus / Profinet. 13– Option of picking up the load at reduced power and subsequent passage to maximum power when the load is lifted; 14– Option of panels air conditioning / heating according to the ambient temperature; 15– Remote control panel functions monitoring option via PC and / or mobile devices (from an Industry 4.0 perspective); 16– Option with total monitoring of the battery pack; 17– Motor control option, beam extension / rotation and magnets misalignment;
