Electromagnetic separator SEN, SM series

particlefor the recycling industryprocess

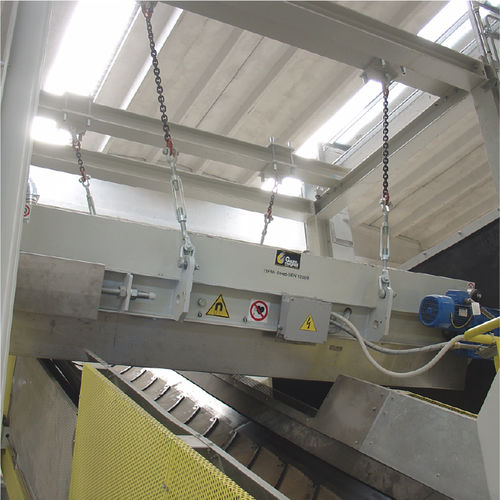

Gauss Magneti Belt Separators for extraction and recovery of ferromagnetic intrusions from inert process material. ApplicaTIONS: Waste and scrap recovery plants MSW and WEEE selection plants Crushing of aggregates Mineral grinding Material recycling: Wood Plastic Glass Ferrous and non-ferrous metals Various In these separators, an extractor belt runs around a magnet that attracts the ferrous material, which is then conducted to a discharge area. Once separators are installed at height or on the ground, transversal or longitudinal to the flow of materials, it will be possible to adjust their inclination and the distance between the magnet and the belt. In these separators, the magnetic field is generated by (aluminum or copper) wound on a steel core with low carbon content and high magnetic permeability. ADVANTAGES The magnetic field can be activated and deactivatedremotely. The magnetic field is characterized by is great depth, effective even in cases of high thickness of process material to be treated.
