Characteristics
- Measured/monitored value
- level
- Mounting
- plug-in
- Other characteristics
- adjustable, modular, electronic
Description

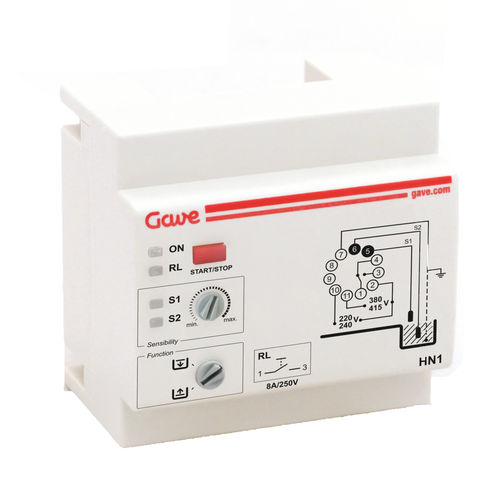

Electronic modular relay for automatic control of conductive liquids in a single tank.
Adjustable sensitivity, either well or tank.
Monitoring of filling (up) or emptying (down).
- Plug-in base mounting (11 pin)
- Mounting options: on symmetrical DIN rail
Panel mounting with one screw DIN 963, M4
Panel mounting with two screws and two nuts, M3
- Protection up to 2500V peak (1,2-50 μs) in voltage supply and probes against lightning disturbances on the supply
- Output changeover relay 8A / 240V AC cos φ = 1
