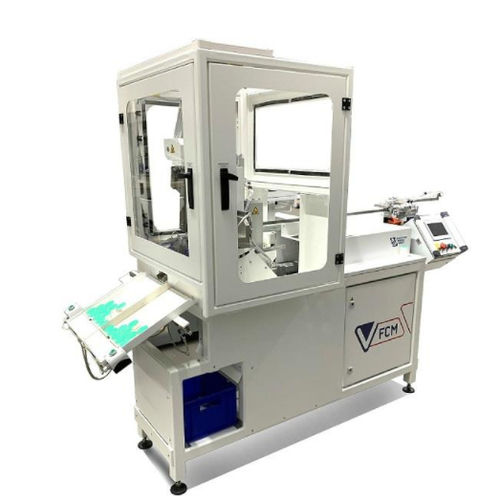

Automatic cutting machine FCM

high-precision

High precision filament hank cutting machine The FCM is an automated, high precision bundle cutting machine for toothbrush filament and similar materials. Filament hanks with paper and plastic wrappings or sleeve can be processed. The precision in the cut length is ± 0.15 mm, making the bundles most suitable for the anchorless toothbrush machines PTt and AFT with integrated pre-endrounding. The exact filament lengths guarantee a perfect end-rounding of the filament tips in the toothbrushes. HIGHLIGHTS High precision in the filament cut length: ± 0.15 mm = 0.006 inches High output: 17 cuts per minute Suitable for all known filament types and filament cross sections Gentle cutting, i.e. no disturbance of filaments Very sturdy and simple design, user-friendly and low maintenance Extremely low spare parts consumption Ideal for anchorless toothbrush machines PTt and AFT TECHNICAL DATA Output - 17 bundles per minute Hank wrapping - Paper, plastic, plastic sleeve Filament types - All known filament types and filament cross sections Cut filament length - Between 14 and 18 mm. Other lengths upon request Machine dimensions (mm) - L 2400 W 1000 H 1950
