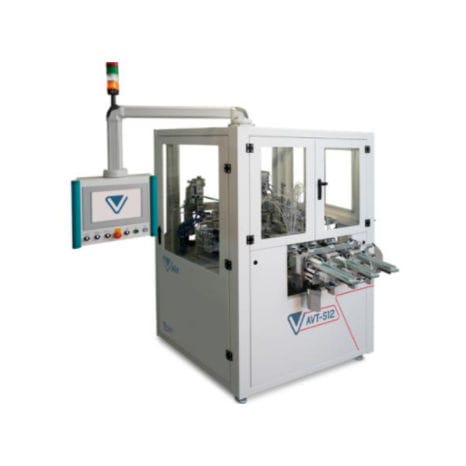

Dental brush production machine AVT-S12

automatichigh-speed

Automatic high-speed anchorless toothbrush line The AVT-S12 machine is an automated, high speed toothbrush machine of sturdy and simple construction. Toothbrush heads are fed into the machine by means of a vibratory bowl feeder. The pre-endrounded filaments are all picked simultaneously from up to 6 fibreboxes, and transported into the head plate by menas of a vacuum technique, after which the filament tips are profiled, and the ends are fused together. This ftufted head can be ejected, or an in-line assembly unit weld or click it to the toothbrush handle. HIGHLIGHTS Very quiet running and slow movements Very sturdy and simple design, user-friendly and low maintenance Very high output: 32 brushes per minute, independent of the number of tufts FRM machine end-rounds the filaments and cuts them to the correct length Extremely low spare parts consumption Large variety of topography possibilities without the use of profiled trimmers or spreader systems TECHNICAL DATA Filling system - Vacuum Fibre colors - Up to 6 Production (br/min) - 32 Max tuft length visible (mm) - 8.5 Filaments, min diameter (mils) - 5 Power consumption (kW) - 6.23 Air consumption (l/min) - 510
