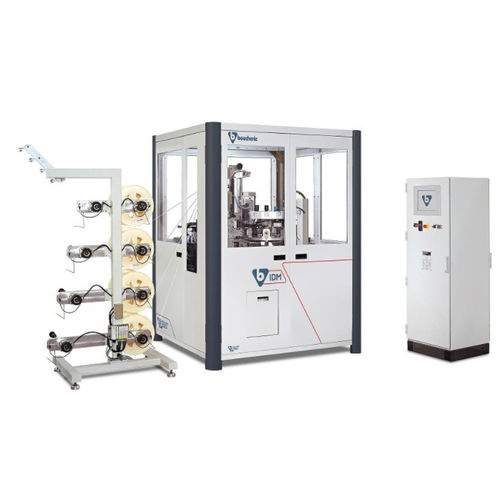

Brush production machine IDM

For the production of interdental and mascara brushes Mass production machine for interdental, medical and mascara brushes, according to the carrousel principle. All operations are done in the same clamp for a superior product quality. Ergonomic design with a minimal use of floorspace. The same IDM machine can produce short brush heads or brushes with a long twisted stem with a minimum of waste of metal wire. The machine is available with spool feed or with a fibrebox for pre-cut fibre, and it is prepared for easy integration with assembly and packaging systems. HIGHLIGHTS Increased output: up to 5400 brushes per hour Electronic wire feeding and electronic wire forming for reduced bending radii of the smallest products Re-engineered clamping chucks in a high-tech material for reduced use of wear parts Redesigned clamping system for the brush wire with a larger clamping range for quicker change-overs TECHNICAL DATA Max wire diameter (mm) - 0.9 Min wire diameter (mm) - 0.18 Max brush head length (mm) - 32 Max total brush length (mm) - 73 Max trim diameter (mm) - 10 Min trim diameter (mm) - 1.8 Power consumption (kW) - 2 Air consumption (l/min) - 220 Dimensions (mm) - L 1413 W 1613 H 2140
