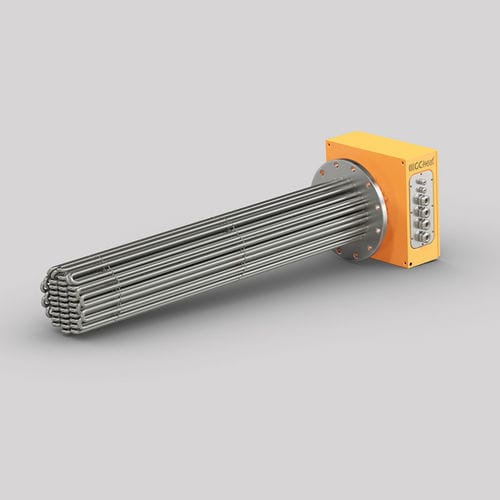

Tubular heating element GC-flange

plateindustrialexplosion-proof

High performance in limited space GC-flange high-performance flanges offer high electrical heating performance even under limited volume conditions. The careful selection of materials, our production process as well as our design and engineering capacities guarantee a technologically and economically advanced solution with a long lifetime. The heating performance of GC-flanges derives from an adjustable number of single high-density GC-tube 8.5 or 16 mm tubular heaters, welded into the flange plate. GC-flanges are fully wired ready for connection with a terminal housing complying with protection class IP54 to IP66 (further protection classes upon request). Controllers, limiters and other protection devices may additionally be delivered upon request. TECHNICAL POSSIBILITIES AND OPTIONS Thermo-insulated connection housing Installation of a fin for the multiway option Installation of thermostats, limiters and other protection devices Ready for connecting Also available as explosion-proof version GC-flange EX APPLICATIONS Raw water heating Recirculating hot-water heating Oil heat carrier Steam generation and steam superheating Bitumen and oil heating Air heating Further applications in industrial process engineering and apparatus construction
