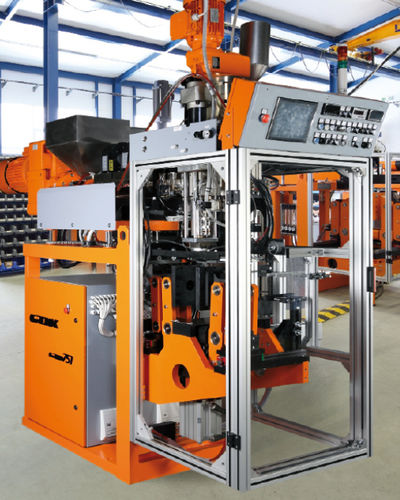

Extrusion blow molding machine GM 750 seriestwin-stationsingle-stationautomatic
Add to favorites
Compare this product
Characteristics
- Type
- extrusion
- Other characteristics
- twin-station, single-station, automatic, electric, multi-cavity, pneumatic
- Hollow part volume
Min.: 0 l
(0 gal)Max.: 1.5 l
(0.4 gal)- Clamping force
30 kN
Description
Dimensions (Width/Length/Height) - 1 200 / 2 400 / 2 400 mm - 2 000 / 2 700 / 2 400 mm - Screw diameter - 32 mm - 40 mm
Weight - 1 000 kg - 1 700 kg -
Extruder drive output - 7,5 kW - 11 kW
Extruder output HD-PE - 14 kg/h - 23 kg/h
Shuttle stroke
250 mm
Standard center distance
2 Cavities - 3 Cavities
90 mm - 50 mm
Mould closing - electric - pneumatic - pneumatic
Carriage movement - electric - electric - pneumatic
Blow pin movement - electric - electric - pneumatic
Parison cutter - pneumatic - pneumatic - pneumatic
Deflashing - pneumatic - pneumatic - pneumatic
Extruder bobbing - pneumatic - pneumatic - pneumatic
Wall thickness control - electric - electric - electric
