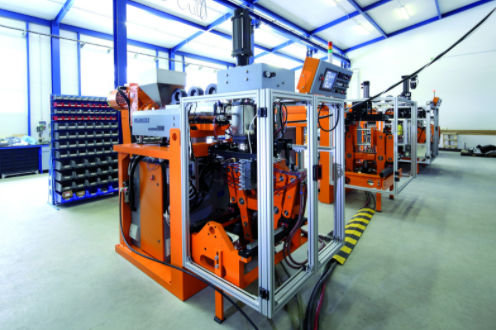

Extrusion blow molding machine GM 2000 series
twin-stationautomaticelectric

Extrusion blow molding machine - GM 2000 series - GDK spol. s.r.o. - twin-station / automatic / electric
Extrusion blow molding machine - GM 2000 series - GDK spol. s.r.o. - twin-station / automatic / electric
Extrusion blow molding machine - GM 2000 series - GDK spol. s.r.o. - twin-station / automatic / electric - image - 2
Extrusion blow molding machine - GM 2000 series - GDK spol. s.r.o. - twin-station / automatic / electric - image - 3
Add to favorites
Compare this product


Characteristics

Type
extrusion
Other characteristics
twin-station, automatic, electric, multi-cavity, single-station, pneumatic
Hollow part volume

Max.: 3 l
(0.8 gal)

Min.: 0.3 l
(0.1 gal)

Clamping force

50 kN

Description

Dimensions (Width/Length/Height) - 1 500 / 3 000 / 2 500 mm - 2 500 / 3 800 / 2 500 mm - Screw diameter - 45 mm - 60 mm Weight - 2 700 kg - 4 000 kg - Extruder drive output - 15 kW - 22 kW Extruder output HD-PE - 37 kg/h - 70 kg/h Shuttle stroke 300 mm 350 mm Standard center distance 2 Cavities - 3 Cavities - 4 Cavities 100 mm - 70 mm - - 130 mm - 100 mm - 70 mm Mould closing - electric - pneumatic Carriage movement - electric - pneumatic Blow pin movement - electric - pneumatic Parison cutter - pneumatic - pneumatic Deflashing - pneumatic - pneumatic Extruder bobbing - pneumatic - pneumatic Wall thickness control - electric - electric

VIDEO

Catalogs

GM 2000
GM 2000
1 Pages
