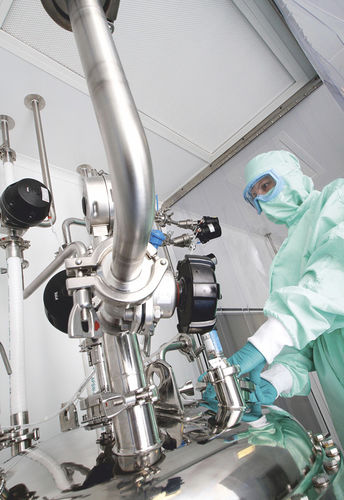

Storage tank GDN

distributionfor waterfor the pharmaceutical industry

GDN TANK is a society specialized in the production of stainless steel tanks for the storage of purified or injectable water. They can be in pressure or atmospheric, destined to pharmaceutical, food and cosmetic industries and much more. Thanks to its edge technology concerning the welding and the treatment of the tank surfaces, we guarantee an excellent qualitative production. COMPLETLEY CUSTOMIZABLE TANKS WITH LEGS, FEET OR WHEELS LEVEL OR/AND LOAD CELLS CLADDED OR WELDED TANK IN TANK INSULATION ANY KIND OF INTERNAL/EXTERNAL FINISHING: SATIN 2B MIRROR POLISHING ELECTROLPOLISHING Ra<0,8 / 0,6 / 0,4 µm In addition to the storage tanks, GDN Tank directs his attention to the distribution loops too. The distribution loop is realized with pipes and fittings in AISI 316 L stainless steel ASTM 270 ASME BPE mechanical polish finished to RA ? 0,6 µm orbital automatic weldings and designed according to FDA-CGMP. The piping slope is minimum 0,5% to guarantee the full drainage of the whole system. Flow balancing orifices are installed to guarantee the perfect water circulation and right flow-rate to use points, sample ports after the circulation pumps and the loop return allow the control of pure water quality and all the necessary instruments will be supplied in order to guarantee the best work of loop distribution according to the existing regulations. User point means not only the ZDL valve but also all the pipe, all the fittings and instruments kit starting from the disengagement that comes out from the ceiling. At the end of the execution the PW loop will be completely pickled and passivated.
