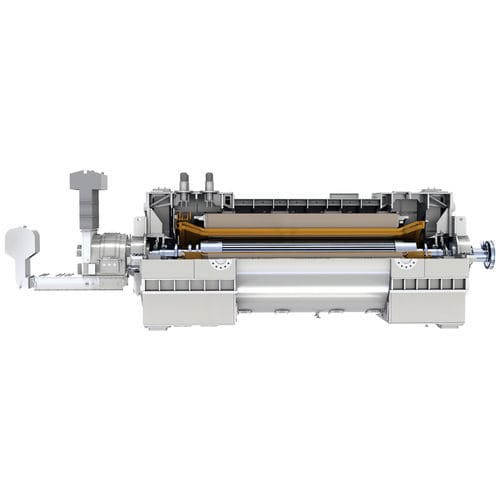

Three-phase alternator Gen-H
inductionhigh-voltagepower plant

three-phase alternator
three-phase alternator
three-phase alternator
Add to favorites
Compare this product


Characteristics

Phase
three-phase
Type
induction
Electrical characteristics
high-voltage
Product applications
power plant
Domain
for power generation, cost-effective
Cooling system
hydrogen-cooled
Power in kVA

712,000 kVA, 755,000 kVA
(968,050.26 hp, 1,026,513.97 hp)

Voltage

23 kV, 26 kV

Supply frequency

50 Hz, 60 Hz

Description

GE’s hydrogen-cooled generator systems are the right fit for high-efficiency applications and can operate in both simple and combined-cycle power plants. Their high power output makes them a more cost-effective than solution than many water-cooled machines. Key features Automated Hydrogen Gas Control and Sealing Automated hydrogen gas control and sealing, enabled by the Mark VIe control system, reduces the need for manual intervention and allows more efficient accessories operation. Enhanced Seal Performance Upgraded end shield reduces deflection for enhanced seal system performance, accommodates increase drive train axial expansion, and improves maintenance access to seal casing and bearing housing. New levels of efficiency Automated hydrogen gas control and sealing, enabled by the Mark VIe control system, reduces the need for manual intervention and allows more efficient accessories operation. An upgraded end shield reduces deflection for enhanced seal system performance, which accommodates increased drivetrain axial expansion, improving maintenance access to the seal casing and bearing housing.
