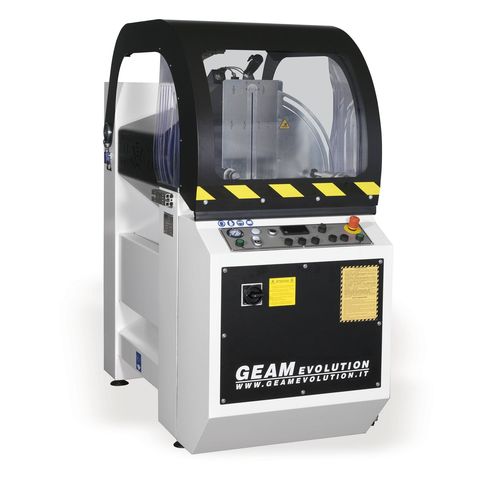

Blade cutting machine BARRACUDA 550for aluminumfor aluminum profilesnumerical control
Add to favorites
Compare this product
Characteristics
- Technology
- blade
- Material
- for aluminum
- Product handled
- for aluminum profiles
- Control type
- numerical control
- Applications
- for industrial applications
- Configuration
- single-head
- Other characteristics
- automatic, semi-automatic, pneumatic, vertical, 45°, fixed, 90°
- Weight
480 kg
(1,058.22 lb)
Description
Single-head cutting off machine with recessing blade realized for aluminium profiles. It has fixed positions at -20°,-45°,90°,+45°,+20°, but it can also cut at intermediate positions.
There are three versions available: AUTOMATIC, SEMI-AUTOMATIC AND ELECTRONICS.
OVERALL DIMENSIONS BARRACUDA 550
LxPxH 780x1550x1600 mm
TECHNICAL CHARACTERISTICS
• Blade diameter: 450/550 mm
• Three phases motor 220-400 Volt 50/60 Hz 2,2 Kw (2,3 hp)
• Blade: 2800 rpmin
• Air Supply: 7 bar
• Pneumatic lubrication
• Digital display in the automatic version
• BARRACUDA SA / EL
OPTIONALS
• Single phase motor
• Vertical clamps
VIDEO
Catalogs
BARRACUDA 550
2 Pages
